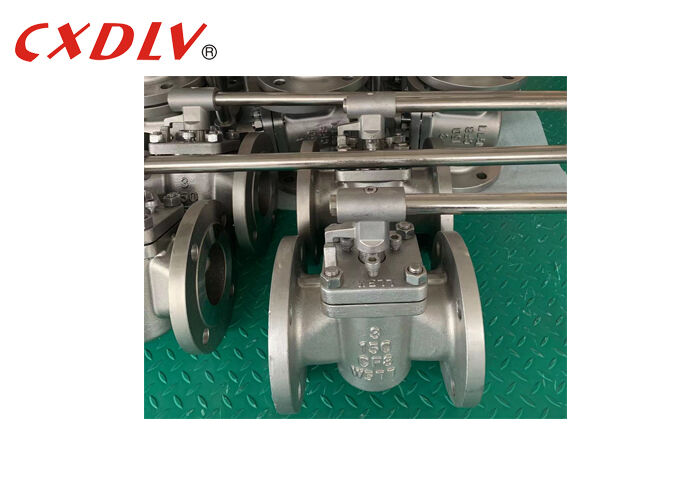

Manual Operation Two-Way Sleeved Plug Valve CF8 Body Quarter-turn Valve with Handle Lever Operation 3 Inch 150LB RF
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | CXDLV |
| Certificering: | PED/ISO |
| Modelnummer: | X43F-150LBP |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 stuk |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | 1 polywood case/1 set |
| Levertijd: | 7-30 dagen |
| Betalingscondities: | L/C, T/T, Western Union |
|
Gedetailleerde informatie |
|||
| lichaamsmateriaal: | CF8, CF8M, WCB | Afdichtingsmateriaal: | PTFE |
|---|---|---|---|
| Kleur: | Zilver | Standaard: | ANSI150LB ANSI300LB |
| Plug: | CF8, CF8M | Gezicht tot gezicht Standard: | ASME B16.10 |
| Operatie: | Handmatige bediening/wormwiel/hendel | ||
| Markeren: | Manual operation sleeved plug valve,Two-way quarter-turn plug valve,3 inch 150LB RF plug valve |
||
Productomschrijving
Manual Operation Two-Way Sleeved Plug Valve CF8 Body Quarter-turn Valve with Handle Lever Operation 3 Inch 150LB RF
Specifications
- Design and manufacturing : API598
- Structure length standard : ASME b16.10
- Connection flange standard : ASME b16.5
- Pressure temperature rating : ASME b16.34
- Inspection & testing : API598.
Application
A plug valve works by rotating a cylindrical plug inside the valve body. The principle is to align the pipeline with the hole in the center of the plug. The plug hole’s position decides the valve’s opening and closing. In the open position, the fluids experience a streamlined flow due to the interaction between the hole and the pipe. The hole rotates to change its place in a closed condition and blocks fluid passage. This is how the plug valve maintains the system’s efficiency.
Plug valves are available in various types as given below:
Lubricating Plug Valve
Non-Lubricating Plug Valve
Multi-Port Plug Valves
Eccentric Plug Valve
Expanding Plug Valve
Feature
1. According to the use temperature and working medium, self-lubricating material bushings such as F4, F46, PVDF, PP, PO, PE, etc. can be used for lubrication. The sealing friction coefficient is small during the whole working process, the plug body is flexible, and the service life is long. .
2. Valve body inlet and outlet end window design and double channel groove seal ring structure. During the rotation process of the cock, the sealing ratio between the seal pairs is gradually changed until it reaches the fully open or fully closed position, resulting in sufficient sealing. Compared with the pressure, the sealing pair reaches zero leakage.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
