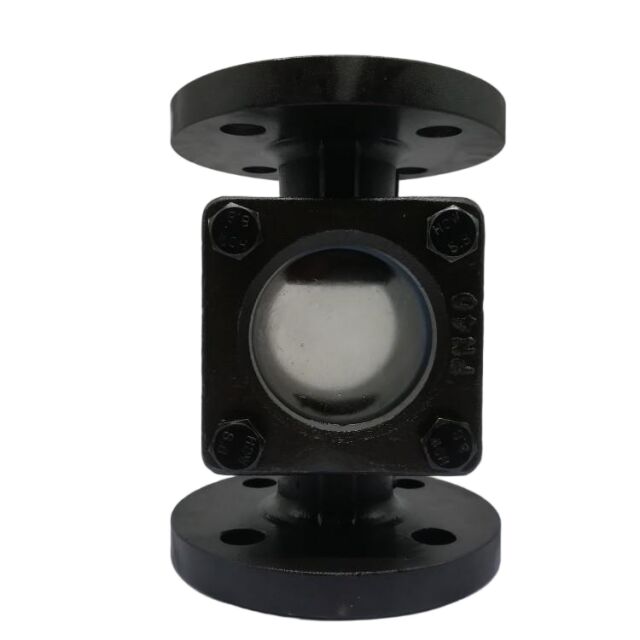

High Pressure Flanged Sight Glass with WCB Body and Pyrex Glass Offering Clear Visual Access and Strong Flanged Connections
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | CXDLV |
| Certificering: | CE&ISO |
| Modelnummer: | SG-ZT |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 ST |
|---|---|
| Prijs: | FOBUS$34~550/pc |
| Verpakking Details: | Geschikte multiplexkisten volgens verschillende kleppenstructuur |
| Levertijd: | 5 ~ 25 werkdagen |
| Betalingscondities: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Levering vermogen: | 1000 stcs/mon |
|
Gedetailleerde informatie |
|||
| Materiaal: | Koolstofstaal | Glas: | Gehard glas |
|---|---|---|---|
| Kasket: | PTFE | Temperatuur: | 20 ℃ ~ 185 ℃ |
| Verbinding: | Ansi flens | Maat: | 1/2 "~ 8" |
| Markeren: | flanged sight glass with WCB body,high pressure sight glass with Pyrex,flanged sight glass for clear visual access |
||
Productomschrijving
High Pressure Flanged Sight Glass with WCB Body and Pyrex Glass Offering Clear Visual Access and Strong Flanged Connections
Product Feature

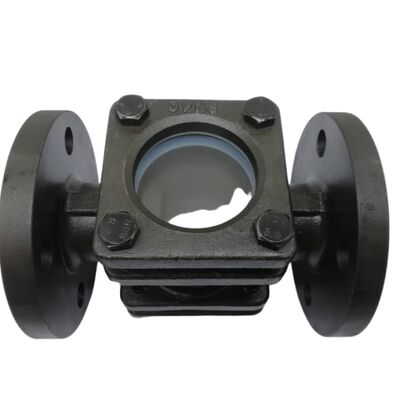

Double Flange Sight Glass
Applicable Standards:
- Design and Manufacturing: ASTM B16.34
- Flange Connection: ASTI16.5
- Test and Inspection: API598
Size Range:
- 1/2"~8"
Pressure Rating:
- ANSI 300LB
Temperature Range:
- -20°C~185°C
Double Window Sight Glass is a simple assembly of two glasses on single cast or fabricated body at two opposite sides. Use of these types of flow indicator is for spot inspection and view of process parameter.
Salient Features
Easy Maintenance
Available in all most all Material of Construction
Manufactured to the Highest Standard
Durable Construction
Material Test Certificate & Pressure Test Certificates furnished on request.
Technical Data
| Size | Dimension(mm) | ||||||
| H | L | D | D1 | D2 | b | Z-d | |
| 2" | 140 | 230 | 162 | 127 | 92 | 23 | 8-19 |
| 6" | - | 420 | 318 | 270 | 216 | 36.5 | 12-22 |
Quality Control
We got very strict and complete quality system to ensure that each product will meet quality requirements as per clients, incoming quality control, final quality control, out-going quality control. Meanwhile, all of the products will be strictly inspected before delivery.”’ Quality First, Service First’’ that we are pursuing All the time.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
