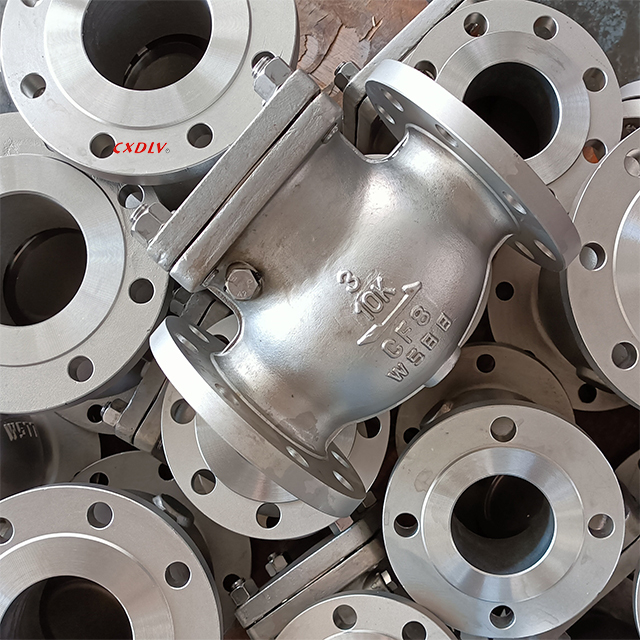

DN80 Stainless Steel Swing Check Valve Flange End JIS10K
Productdetails:
| Plaats van herkomst: | CHINA |
| Merknaam: | CXDLV |
| Certificering: | ISO9001:2008&PED |
| Modelnummer: | H44W-16P |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 stuk |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | Geschikte Polywood koffers afhankelijk van de ventielstructuur |
| Levertijd: | 7-30 dagen |
| Betalingscondities: | L/C, T/T, Western Union |
|
Gedetailleerde informatie |
|||
| Schijfmateriaal: | CF8M/CF8/CF3/CF3M/WCB | Temperatuur: | Normale temperatuur |
|---|---|---|---|
| Maat: | 2 "~ 14" | Verbinding: | Flanke naar flanke |
| Zitring: | PTFE/PPL | Lichaamsmateriaal: | CF8M/CF8/CF3/CF3M/WCB |
| Druk: | PN16, PN40, PN25, JIS10K, ANSI150LB, ANSI300LB | ||
| Markeren: | JIS10K Swing Check Valve,Flange End Swing Check Valve |
||
Productomschrijving
DN80 Stainless Steel Swing Check Valve Flange End JIS10K
Specifications
- Design Standard: ASME B16.34, API6D
- Wall thickness: ASME B16.34.
- Face to Face: ASME B16.10, API6D,JIS10K
- End Flange: ANSI/ASME B16.5,JIS B2212
- Inspection and Test: API598, API6D
Application
Check valves are mechanical devices that permit liquids and gases to flow in only one direction, preventing flow from reversing. They are classified as one-way directional valves meaning they have two openings in the body, one for fluid to enter and the other for fluid to leave. Fluid flow in the desired direction opens the valve, while backflow forces the valve closed.
| SIZE | d | L | H | D | C | G | T | N-ΦM |
| 1" | 25 | 127 | 64 | 108 | 79.5 | 51 | 11.1 | 4-16 |
| 1 1/4" | 32 | 140 | 68 | 117 | 89.5 | 64 | 12.7 | 4-16 |
| 1 1/2" | 40 | 165 | 75 | 127 | 98.5 | 73 | 14.3 | 4-16 |
| 2" | 50 | 203 | 98 | 152 | 120.5 | 92 | 15.9 | 4-19 |
| 2 1/2" | 65 | 216 | 112 | 178 | 139.5 | 105 | 17.5 | 4-19 |
Feature
1. The swing-type stop valve has a spherical connection structure at the connection between the rocker arm and the valve flap, so that the valve flap has a certain degree of freedom in the range of 360 ° C, and has appropriate micro-position compensation.
2. The sealing surface of the rotary check valve sealing pair is made of alloyed steel (13Cr) or cemented carbide Stellite6, which is used in fine-grained media and does not wear quickly due to erosion.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer for more than 16years.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free, but the courier charge is accounting on buyers.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
